Environments

An Agor environment is a set of commands attached to a branch. You supply the commands to start, stop, reset, and inspect your app; Agor runs them when you use the branch’s environment controls. You choose where the app runs.

Docker Compose on a development machine or shared server is the most straightforward starting point: the commands and predictable URLs fit entirely in .agor.yml. A remote provider uses the same interface, sometimes with a small script that calls its API, waits for startup, or discovers the app URL. Agor does not require Docker, provision infrastructure on your behalf, or ship a native integration for every provider: if you can write a bounded command that triggers your environment, you can connect it.

A repo ships a library of named variants (lean, postgres, full, …) that every branch can pick from. Variants are Handlebars-templated and get rendered into a per-branch snapshot that the Start/Stop/Nuke/Logs buttons execute against.

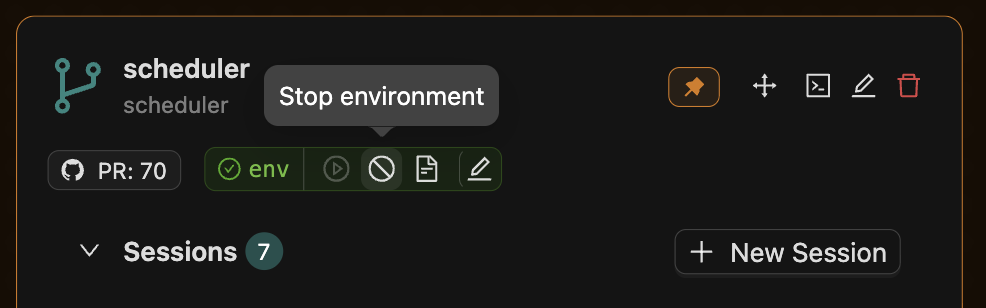

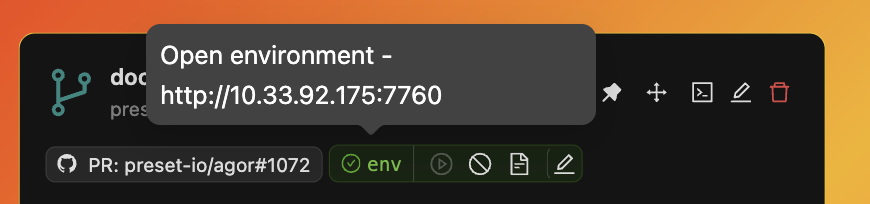

What it looks like on the card: a green env pill, one-click open, and start/stop/logs/edit icons right next to your branch’s PR badge.

Quick start: Docker Compose

This example assumes a self-hosted Agor instance whose environment executor can access Docker, Compose, and the branch checkout. On a shared box, the operator must deliberately grant that access: control of a Docker engine is powerful, not a substitute for filesystem or user isolation.

Suppose your repo already has a compose.yml that builds your app, serves HTTP on container port 3000, and exposes /health. Its port mapping should accept a host port rather than hard-code one:

# compose.yml — adapt your existing app service
services:
  app:
    build: .
    ports:
      - '${APP_PORT}:3000'

Put this complete environment definition in the repo root:

# .agor.yml
version: 2
environment:
  default: local
  variants:
    local:
      description: Docker Compose on this Agor host
      start: >-
        APP_PORT={{add 10000 branch.unique_id}}
        docker compose -f compose.yml -p agor-{{branch.id}} up -d --build
      stop: >-
        APP_PORT={{add 10000 branch.unique_id}}
        docker compose -f compose.yml -p agor-{{branch.id}} down
      nuke: >-
        APP_PORT={{add 10000 branch.unique_id}}
        docker compose -f compose.yml -p agor-{{branch.id}} down -v
      logs: >-
        APP_PORT={{add 10000 branch.unique_id}}
        docker compose -f compose.yml -p agor-{{branch.id}} logs --tail=100
      health: http://localhost:{{add 10000 branch.unique_id}}/health
      app: http://{{host.ip_address}}:{{add 10000 branch.unique_id}}

Each branch gets its own Compose project and deterministic port, so there is no URL-discovery script or provider binding to maintain. Choose a free port range on your host and keep the resulting ports below 65536. Avoid fixed container_name values or shared explicit volume names in your Compose file, which would defeat per-project separation.

health is the URL the Agor daemon probes; app is the URL your browser opens. This example assumes the daemon can reach the Docker host at localhost; if not, use a daemon-reachable address for health. Set host.ip_address to an address your browser can reach (not necessarily a public IP). Docker publishes the app on the host’s interfaces, so restrict access with your network policy and app authentication.

To connect the controls:

1. A repo administrator imports .agor.yml in the repository environment editor.
2. In the branch’s Environment tab, select local and Render the commands. Review the resolved project name, ports, and URLs.
3. Select Start, inspect the output and health, then open the app link.
4. Use Logs for a bounded log tail and Stop when finished.
5. Use Nuke only when you also intend to remove the project’s Compose-managed volumes. External volumes and bind-mounted files are not erased by this command.

A successful Start means the command succeeded, not that the app is ready. With a health URL, Agor observes HTTP health separately; without one, a successful Start has unknown health. This example rebuilds from the local checkout, including uncommitted changes; live reload additionally requires your own Compose mounts and app watch configuration.

Where your app runs

Self-hosted machines may run Compose locally. Agor Cloud does not provide a local Docker host for your app: use commands that drive a remote provider where your deployment enables them, or its configured webhook surface. Executor tools, credentials, network access, and time limits still apply, and an app launched inside a Cloud executor does not receive public ingress.

Overview

Configuration layers

Managed environments are built out of three layers, precedence low → high:

  ┌────────────────────────────────────────────────────────┐
  │ 1. .agor.yml — repo-shared, committed to git           │
  │    environment.variants.{lean,postgres,full,…}         │
  └───────────────────────────┬────────────────────────────┘
                              │ imported into repo.environment
                              ▼
  ┌────────────────────────────────────────────────────────┐
  │ 2. repo.template_overrides — DB-only, per deployment   │
  │    host.ip_address, custom.internal_registry, …        │
  └───────────────────────────┬────────────────────────────┘
                              │ deep-merged into render context
                              ▼
  ┌────────────────────────────────────────────────────────┐
  │ 3. branch rendered snapshot — plain strings          │
  │    start_command, stop_command, nuke_command,          │
  │    logs_command, health_check_url, app_url             │
  └────────────────────────────────────────────────────────┘

• Layer 1 is authored by repo maintainers and lives in .agor.yml. It’s portable: clone the repo, Import .agor.yml, done.
• Layer 2 is where each Agor deployment pins its own values (host IP, internal registry, AWS profile) without touching the shared file. Stored in the DB, never exported.
• Layer 3 is the output: a flat set of rendered strings attached to the branch. Executors run these verbatim, with no templating at execute time.

Re-rendering is explicit. Editing a variant or an override does not retroactively rewrite existing branches. You hit the Render button when you want a branch to pick up changes.

Branch Environment tab, with variant YAML on top, picker in the middle, rendered snapshot below. The extends: sqlite line on the postgres variant shows variants can inherit from each other.

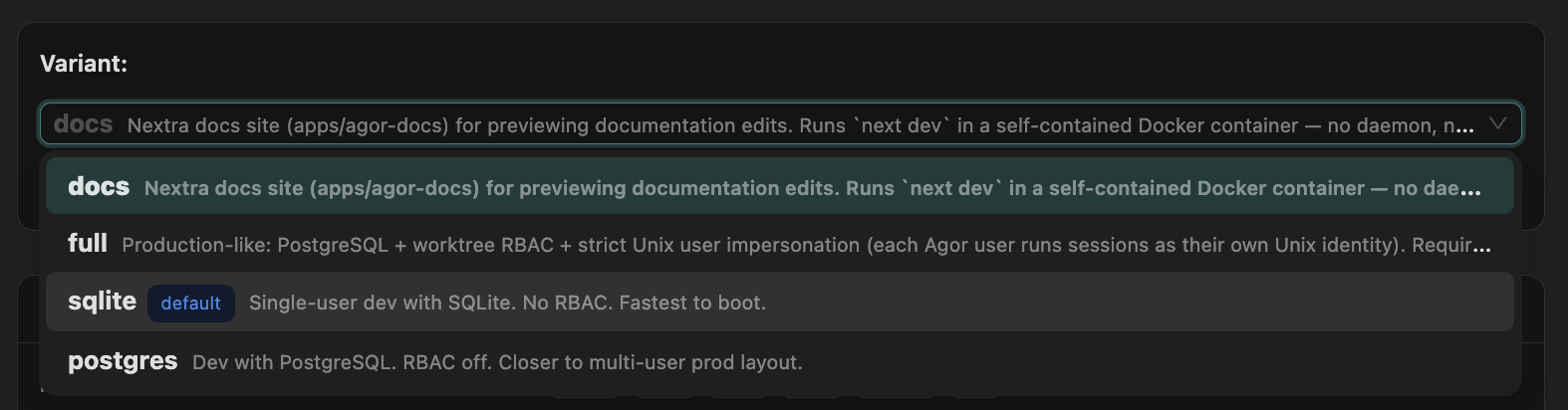

Picking a variant. This historical screenshot predates the rename from full to rich. full remains a deprecated compatibility alias; HA is still a separate variant.

Template variables

Every field in a variant is a Handlebars template. The render context is built in packages/core/src/templates/handlebars-helpers.ts.

Variables

Math helpers

Math helpers are deterministic. The same branch always renders the same ports, which is what keeps parallel branches from colliding.

Use {{shellQuote value}} for any rendered string embedded in a shell command: it quotes the value as one POSIX shell argument instead of treating branch text as shell syntax.

Broken template syntax is reported at render time, not at save time. Click Render to see the exact error with a line number.

The .agor.yml file

.agor.yml lives at the branch root ($BRANCH_PATH/.agor.yml) and is the shared, committed description of a repo’s environment variants. It’s a regular repo file: you edit it on a branch, open a PR, and it rolls out when merged.

Schema

version: 2

environment:
  default: lean # which variant new branches get
  variants:
    <variant-name>:
      description: 'Human-readable one-liner'
      extends: <base-variant> # optional, single-level only
      start: '<shell command template>'
      stop: '<shell command template>'
      nuke: '<shell command template>' # optional
      logs: '<shell command template>' # optional
      health: '<url template>' # optional
      app: '<url template>' # optional

start, stop, nuke, and logs are rendered lifecycle fields. In the default hybrid mode they can be shell commands or explicit http:// / https:// webhooks. Webhooks are invoked with HTTP GET. health and app are always URL templates, not shell commands.

Required fields

• version: 2 at the top level.
• environment.default must reference a variant that exists in environment.variants.
• Each variant (after extends resolution) needs at least start and stop.

nuke, logs, health, and app are optional. The corresponding UI buttons simply hide or no-op when absent.

Runtime URLs from Start

Some providers choose a different URL each time they create or resume an environment. A successful start may therefore return this deliberately tiny, optional JSON object:

{ "app": "https://preview.example.test", "health": "https://preview.example.test/health" }

Both keys are optional, so {} is valid. Unknown keys, non-HTTP(S) URLs, embedded credentials, query strings, and fragments are rejected. Omitted keys fall back to the rendered static app or health value. Runtime values last until the next Start/Stop/Nuke lifecycle boundary; Start is the reconciliation point rather than a permanent provider-name lookup.

• A shell Start emits exactly one line: AGOR_ENVIRONMENT_RESULT={"app":"https://...","health":"https://..."}. Agor removes that control line from captured command output.
• A webhook Start returns the same object with an application/json (or application/*+json) content type. Non-JSON webhook bodies retain their legacy meaning and are ignored as lifecycle results.

app is an optimistic browser link and may point to an authenticated/private provider page. health is different: the daemon polls it continuously. A runtime health URL must resolve only to public IP space, is connected through a DNS-pinned no-redirect request, and should be returned only when the endpoint is actually reachable by the Agor daemon. Static operator-authored health URLs may still target localhost or private infrastructure.

When Start completes without either a runtime or static health URL, the environment becomes Started; health unavailable rather than remaining on a spinner or claiming to be healthy. The App link remains available when known.

extends (single-level only)

A variant may extend one base variant. The base variant itself must not have an extends key. Chains (full → postgres → lean) are rejected at save time with:

variant 'full' extends 'postgres', which itself extends 'lean' —
chains deeper than one level are not allowed

Resolution is a straight per-field merge: child fields win, omitted fields inherit from the base.

Worked example for Superset: lean / postgres / full

version: 2

environment:
  default: lean
  variants:
    lean:
      description: 'SQLite-backed, single-container, fast iteration'
      start: 'docker compose -f docker-compose-light.yml -p agor-{{branch.name}} up -d'
      stop: 'docker compose -f docker-compose-light.yml -p agor-{{branch.name}} down'
      nuke: 'docker compose -f docker-compose-light.yml -p agor-{{branch.name}} down -v'
      logs: 'docker compose -f docker-compose-light.yml -p agor-{{branch.name}} logs --tail=100'
      health: 'http://{{host.ip_address}}:{{add 9000 branch.unique_id}}/health'
      app: 'http://{{host.ip_address}}:{{add 5000 branch.unique_id}}'

    postgres:
      description: 'Postgres + Redis + Celery — closer to prod'
      extends: lean # inherits health + app from lean
      start: 'docker compose -p agor-{{branch.name}} up -d --build'
      stop: 'docker compose -p agor-{{branch.name}} down'
      nuke: 'docker compose -p agor-{{branch.name}} down -v'
      logs: 'docker compose -p agor-{{branch.name}} logs --tail=100'

    full:
      description: 'Postgres + Redis + Celery + worker + beat'
      extends: lean # NOT extends: postgres — chains are not allowed
      start: 'COMPOSE_PROFILES=full docker compose -p agor-{{branch.name}} up -d --build'
      stop: 'docker compose -p agor-{{branch.name}} down'
      nuke: 'docker compose -p agor-{{branch.name}} down -v'
      logs: 'docker compose -p agor-{{branch.name}} logs --tail=100'

Notice that postgres and full both extend lean (not each other). That’s the single-level rule. Both inherit health and app from lean and override the rest.

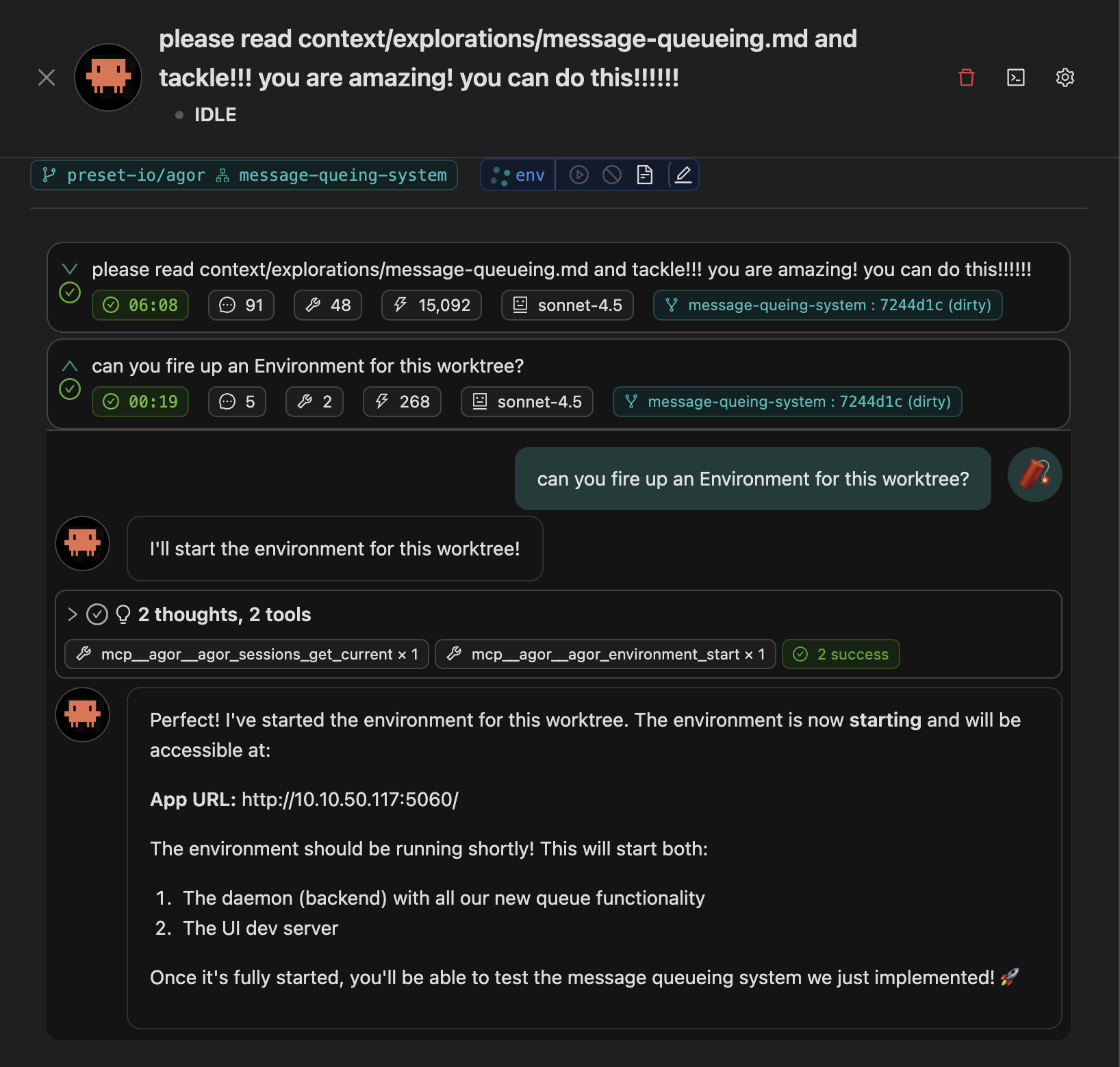

Agent configuration workflow

Agents use the same environment service as the branch card’s Play/Stop controls. Discover the tools with agor_search_tools and inspect their schemas with agor_get_tool_details before calling them:

1. Inspect the target repository’s .agor.yml, the imported definitions from agor_repos_get, and the branch’s current rendered commands and lifecycle state. For a remote provider, adapt the provider-neutral lifecycle pattern and Railway reference to your application.
2. Review the complete configuration, then call agor_repos_import_environment with repoId and the source branchId. This requires admin access and branch filesystem read access. It replaces the repository’s variants and default, preserves deployment-local overrides, and leaves existing branch snapshots alone. Editing the file by itself does not apply it. The admin Import .agor.yml action below is the fallback when the tool is unavailable.
3. Call agor_environment_set with the target branchId and desired variant. Omit variant to re-render the current one. Stop an active environment before switching variants, and inspect the resulting commands before starting.
4. Call agor_environment_start, then inspect agor_environment_health and agor_environment_logs. An accepted request does not prove readiness.
5. Use the reported app URL, and call agor_environment_stop when finished. Use agor_environment_nuke only when destructive cleanup is intended.

Import changes repository-wide definitions, including those other branches may render later. Keep every intended variant in the replacement and inspect existing configuration before changing it. Environment commands use the invoking user’s Global environment variables; collect missing credentials through agor_widgets_request_env_vars, not YAML or rendered command arguments.

Import / export

Two admin-only actions in the repo editor header:

Both paths go through a confirm dialog. Import is replace, not merge. A variant that exists in the DB but not in the file gets dropped.

Because the target is always the file in the currently open branch, the normal workflow is:

1. Iterate on .agor.yml on a branch.
2. Export (or hand-edit) the file.
3. Commit and PR it like any other repo change.
4. On merge, other branches can Import on their next sync.

Deployment-local overrides

template_overrides is a per-repo, per-deployment block that lives in the DB, not in .agor.yml. It’s where each Agor instance pins the concrete values that the shared variants reference (IPs, registries, profile names).

Why it exists

Superset’s upstream .agor.yml shouldn’t hard-code 10.0.1.42 as the host IP. That’s Preset’s infra, not Apache’s. Instead, Superset’s variants reference {{host.ip_address}} and Preset sets it once, per-repo, in template_overrides. The shared file stays clean; the deployment-specific values stay in the deployment.

Schema

template_overrides:
  host:
    ip_address: '10.0.1.42' # overrides daemon config / autodetect
  custom:
    internal_registry: 'registry.preset.io'
    aws_profile: 'preset-dev'
    compose_profile: 'preset'

The structure is a plain { host, custom } map. template_overrides is root-level and applies to all variants. There are no per-variant overrides.

Precedence

At render time the context is assembled in this order (later wins):

1. Daemon defaults (autodetected host.ip_address, etc.).
2. repo.template_overrides (deep-merged).
3. branch.custom_context (for custom.*).
4. Branch identity (branch.*, repo.*).

What it is not

⚠ template_overrides is not a secret store. It’s visible to every user with read access to the repo (admins edit, members read). Use it for infrastructure identifiers (IPs, registry hostnames, profile names), never for API keys, tokens, or passwords.

For secrets, use your user-level environment variables (Settings → Environment Variables, Global scope). Environment commands receive the global variables of the user who presses Start/Stop/Nuke/Logs; session-selected variables are not passed to them.

The import/export parser refuses any template_overrides: key found in .agor.yml and the exporter always strips it. This is a defense-in-depth guarantee that values like host.ip_address: 10.0.1.42 cannot be accidentally committed upstream to a public repo.

Variants in the branch

Each branch has:

• environment_variant, the chosen variant name (e.g. "postgres").
• start_command, stop_command, nuke_command, logs_command, health_check_url, app_url hold the rendered strings, fully substituted, no Handlebars left.

The Environment tab has two stacked editors:

Members see both editors read-only. Users with branch all permission and admins can use the Variant picker and the Render button in between them.

Saving the repo YAML replaces its complete environment configuration: deleted variants, fields, and overrides are removed. Existing branch snapshots remain unchanged until Render. API updates that include environment use the same replacement semantics; omit that key to leave it unchanged.

The Render flow

  [ Variant: postgres ▾ ]   [ Render ▸ ]

1. Pick a variant from the dropdown.
2. Click Render.
3. Agor re-evaluates variant + template_overrides and overwrites the branch snapshot.

If the snapshot has unsaved manual edits (admins only, since members can’t make them), Render prompts a confirm: “Rendering will discard your local edits. Continue?”

No auto-tracking

If an admin edits a variant after a branch has rendered, the branch snapshot does not update until someone clicks Render. There is no dirty indicator, no banner, no auto-rerender. Render explicitly when you are ready to apply the updated commands.

Empty state

A repo with no variants configured shows a disabled picker and:

No environment variants configured. Ask an admin to set up commands in the repo editor above.

Permissions

Two orthogonal axes govern access: who can edit what, and who can run Start/Stop/Nuke/Logs.

Edit permissions

The reason members cannot hand-edit rendered commands: admins curate the set of commands that can run (the variants), and users with branch all permission pick from that list. This makes the variant library the effective allowlist and complements the execution-time deny-list guard.

Execution permissions

Start, Stop, Restart, Nuke, Logs, and Render controls require branch all permission or admin access. Health/status reads can remain available to users who can view the branch because they do not run the configured shell/log commands.

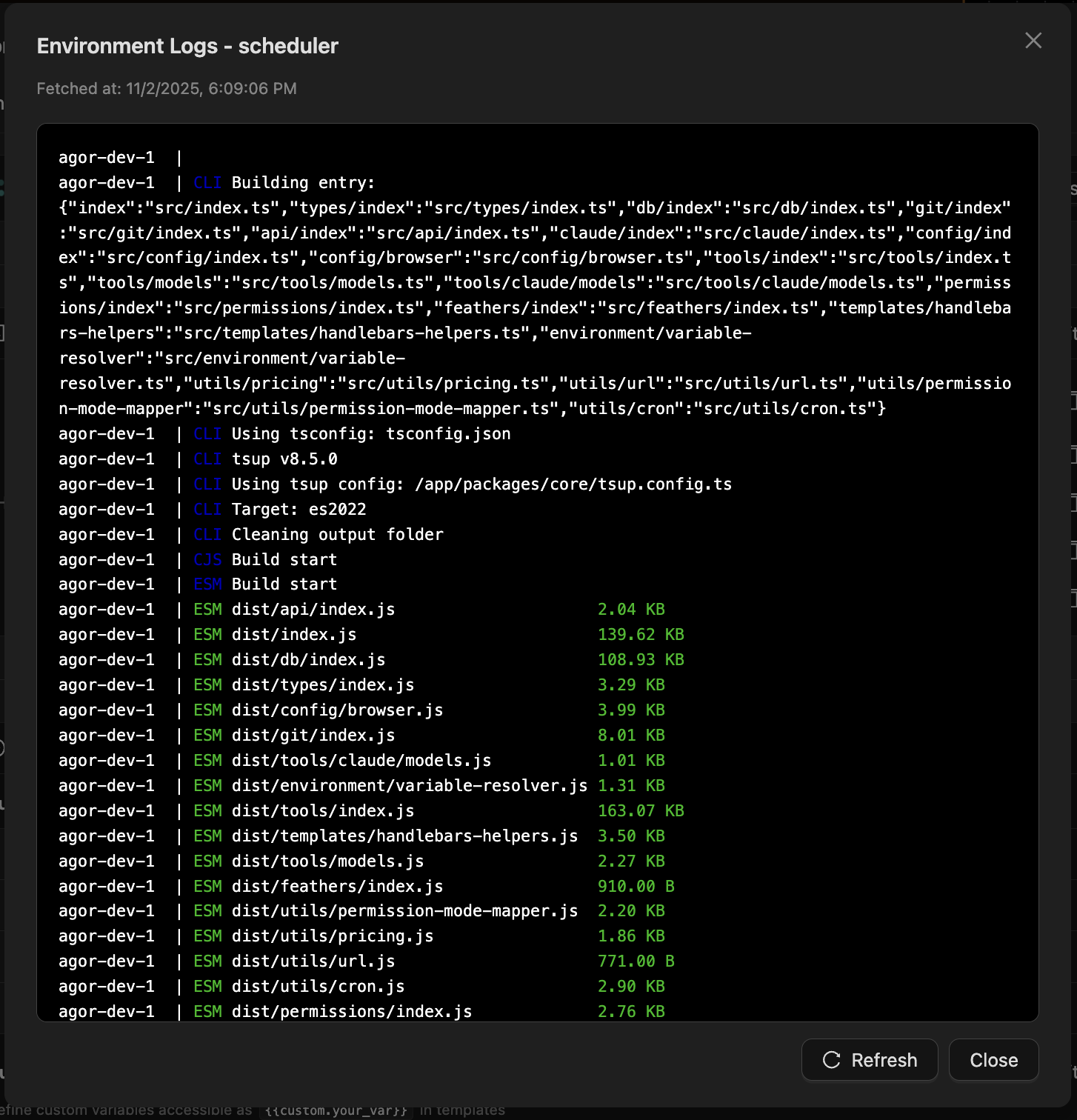

Environment logs

View Logs separates Commands (Start/Stop/Nuke output and recent attempts) from Runtime (output of the configured logs command). Failed or in-flight commands open the Commands tab first. Their output remains available even when no runtime service exists or runtime logs are unavailable. Older attempts are collapsed; general remote-environment guidance is under About remote environments.

Health-check lifecycle

Automatic health monitoring is active only while a non-archived environment is starting or running. A healthy starting observation promotes the durable state to running. Stop, failure, archive, and deletion remove the environment from monitoring; daemon startup reconciliation likewise rediscovers only non-archived starting and running rows.

The rendered health value is stored as branch configuration even when it is not currently a usable URL. This keeps an inactive or optional managed environment from blocking branch and session creation. Agor validates the URL against its outbound-request policy immediately before an actual server-side probe. An unsafe target is never contacted and is reported as unhealthy while the environment is active.

An explicit health/status request does not turn monitoring back on for a stopped, stopping, archived, or deleted environment. It may return a transient diagnostic probe for an environment already in error, but that result does not change durable lifecycle state. Active observations are fenced against concurrent stop, archive, delete, restart, and health-URL changes, so a late success cannot restore an older lifecycle state.

Instance guidance for operators

Operators can display a fixed informational notice at the top of every branch’s Environment tab. Set this top-level key in ~/.agor/config.yaml and restart the daemon (coordinate the same configuration across HA replicas):

environment_disclaimer_markdown: |
  Commands can launch remote environments such as GitHub Codespaces or your own provider.
  Agor runs your commands and reports their results; it does not host your application
  in the executor. Servers started inside Cloud executor Pods are not exposed and
  commands are time-limited. Your remote provider's security and billing apply.
  See the [environment guide](https://agor.live/guide/environment-configuration)
  for configuration and cleanup responsibilities.

This is public, instance-wide policy content, not a secret store. Repositories, variants, and branch snapshots cannot override it. It supplements the dynamic capability summary; text cannot enable execution or change permissions.

Omit the key or use an empty string to show no notice. The limit is 4000 UTF-16 code units (most characters count as one; emoji may count as two). Supported Markdown is paragraphs, emphasis, lists, and absolute HTTP(S) documentation links without embedded credentials. Raw HTML, images, embeds, code blocks, and interactive plugins are not rendered. Unsafe and relative URLs are not clickable.

Migration from pre-variants Agor

No forced user action. The upgrade is silent:

Existing branches keep running against their existing rendered commands. Nothing re-renders until someone hits Render or creates a new branch.

Security notes

Two things worth internalizing before you ship a variant to the rest of the team.

1. Deny-list runs on the rendered string, at execute time

The deny-list guard (the thing that blocks destructive commands like rm -rf /) runs on the final rendered command, at execute time (not against the template, and not at save time). That means:

• A template can render to a denied command under some branch contexts and not others.
• The first visibility you have that a command is denied is when someone clicks Start / Stop / Nuke and it fails.
• Keep your templates simple. If the rendered shape of a command isn’t obvious from reading the template, add a description: to the variant so teammates know what they’re launching.

2. template_overrides is not a secret store

Restating the callout from above because it’s the single most common mistake:

• template_overrides values are visible to every user with repo access.
• Values get baked into shell strings at render time. Anyone who can read the branch snapshot sees them.
• Use it for IPs, hostnames, registries, profile names. Not for API keys, tokens, or passwords.
• For secrets, use user-level Global environment variables. They are injected into the command process of the user who runs the action and never land in a rendered command. Session-selected variables are not available to environment commands.

3. Managed environment execution mode

Agor instances choose how lifecycle fields are handled. The default is hybrid:

# ~/.agor/config.yaml
execution:
  managed_envs_execution_mode: hybrid

In hybrid mode, lifecycle fields can be shell commands or explicit http:// / https:// webhooks. URL-shaped fields use webhook execution, so a repo can use webhooks for one action and commands for another.

Some instances are configured for webhook-managed environments:

# ~/.agor/config.yaml
execution:
  managed_envs_execution_mode: webhook-only

In webhook-only mode, rendered start, stop, nuke, and logs fields must render to explicit http:// or https:// URLs. Agor sends a GET request to the URL.

environment:
  default: remote
  variants:
    remote:
      start: 'https://orchestrator.example.com/agor/start?branch={{branch.name}}'
      stop: 'https://orchestrator.example.com/agor/stop?branch={{branch.name}}'
      logs: 'https://orchestrator.example.com/agor/logs?branch={{branch.name}}'
      health: 'https://apps.example.com/{{branch.name}}/health'
      app: 'https://apps.example.com/{{branch.name}}'

V1 webhooks are intentionally simple: GET only, no custom headers, no request body, no signing, and redirects are not followed. V1 webhook targets must be public HTTP(S) destinations; localhost, private/link-local ranges, and URL credentials are rejected. Use a trusted orchestration service, and avoid secrets in query strings because rendered branch snapshots and infrastructure logs may expose them.

Bounded external commands in HA

HA hybrid mode supports remote-environment trigger scripts, not application hosting. Agor dispatches a bounded executor, which claims its admitted attempt and reports progress and completion to any daemon replica. The initiating HTTP request waits at most 30 seconds for launcher admission, not for the command or its result. An accepted Start is not a readiness guarantee.

Missing shell Logs prerequisites does not block lifecycle dispatch or the output reported by lifecycle executors. Configure only capabilities you actually provide. The Environment tab shows the current capability and outcome separately from instance guidance.

Operator configuration (in addition to the normal HA prerequisites):

daemon:
  public_url: https://agor.example.com # reachable from executors; may load-balance replicas
deployment:
  mode: ha
  ha:
    execution_topology: external
execution:
  unix_user_mode: delegated
  managed_envs_execution_mode: hybrid
  executor_command_template: /path/to/reviewed-external-launcher
  # Assertion about the external Job's TOTAL lifetime, including termination grace.
  # Set only after the launcher/control plane enforce this bound.
  environment_command_job_deadline_ms: 485000
  session_token_expiration_ms: 900000 # at least 545000

Do not simply flip the mode on an existing Cloud installation. The trusted launcher must recognize environment.lifecycle payloads carrying params.attempt, perform normal tenant/user/branch and Team admission, create the external executor Job, and exit promptly after that admission. It must not wait for completion, reserve a synchronous response, retry the command, or expose application ingress. Other command families, especially diagnostic queries, retain their own handoff. The executor image must support the same attempt/report protocol as every daemon. Keep daemon, database, and executor clocks synchronized for the absolute deadlines.

Deadlines and rollout coordination

Admission and claim budgets are shared fixed defaults, not configurable settings. The longer startup allowance applies to managed environments across Agor; it does not change normal agent execution timeouts. Admission acknowledges the external Job, while the claim budget also covers cold-node scheduling and image pulls.

For Kubernetes, configure command-specific activeDeadlineSeconds plus terminationGracePeriodSeconds within the asserted total, with backoffLimit: 0 and restartPolicy: Never. The external bound is necessary when an executor crashes or commands escape its process group. Agor does not implement provider containment, discover zombie remote resources, or certify their deletion.

Before enabling hybrid, apply PostgreSQL migration 0101_environment_command_discovery and replace the daemon/executor cohort with compatible versions. The migration changes only the existing recovery SELECT policy and partial index to include stopping; lifecycle rules remain application code, using PostgreSQL row locks or SQLite immediate transactions. No SQLite schema migration is required. Ordinary tenant scope and branch permissions still apply. The privileged PostgreSQL monitor discovers routing IDs, then switches to the corresponding tenant for all state transitions.

Coordinate the external launcher and Job deadline before setting the deadline assertion. Drain active attempts before rolling back; retain remote cleanup diagnostics. For branches with attempt metadata, a configuration-only switch to legacy lifecycle handling is not supported: the generic state-write guard deliberately remains closed. Roll back the compatible daemon/executor cohort together instead. Deploy neither a mixed attempt-capability cohort nor a launcher that waits for command results. No particular Git SHA or provider is hard-coded as an eligibility gate.

Script contract and outcomes

For example, a repository variant can call three scripts:

environment:
  version: 2
  default: remote
  variants:
    remote:
      start: ./scripts/start-remote.sh {{branch.name}}
      stop: ./scripts/stop-remote.sh {{branch.name}}
      nuke: ./scripts/delete-remote.sh {{branch.name}}
      logs: ./scripts/remote-logs.sh {{branch.name}}

Each script must finish; do not start a local development server in the executor. Remote resource identity and credentials belong to your scripts/provider. Make Stop safe to repeat. Agor never automatically retries Start, Stop, or Nuke. Start can optionally return the same tiny runtime result used by ordinary managed environments. Emit exactly one stdout line before exiting:

AGOR_ENVIRONMENT_RESULT={"app":"https://preview.example.com","health":"https://preview.example.com/health"}

The JSON is the strict {app?, health?} schema described above. Agor parses control records from stdout only; stderr remains diagnostic output. Invalid or ambiguous results produce an unknown outcome, not a claim that nothing happened. The former AGOR_ENVIRONMENT_RESULT_FILE value containing exactly {"access_urls":[...]} remains accepted at the executor boundary for upgrades, but new bridges should use the stdout contract. Without a result, the rendered app and health values are used. Reported links appear in the Environment tab; the environment pill opens the reported App, falling back to the static app URL. A successful Start waits for configured health checks; without one, the command success and unknown health are displayed separately. An early healthy response never releases a still-running command’s admission. A successful Stop/Nuke records script success, not independent proof of cleanup.

Only one lifecycle attempt may be active per branch. Duplicate claims cannot run again; stale reports cannot overwrite a newer attempt. Lost claim/result reports expire to unknown, even after the initiating daemon disappears. The UI retains an output tail of at most 32 KiB per attempt, plus three prior attempts, and marks truncation or missing/incomplete output. Do not print secrets: this diagnostic output is readable by authorized branch viewers.

After failed or uncertain cleanup, Retry Stop is allowed once the current attempt has settled or expired. Start requires an explicit warning acceptance bound to the currently displayed failed/uncertain attempt. Starting again can leave additional billable resources running, and your scripts might no longer be able to stop the previous environment. Confirmation is never sticky:

• REST: POST /branches/<id>/start with {"confirmation_of":"<current attempt UUID>"}.
• MCP: agor_environment_start with confirmationOf, only after operator consent.
• CLI: agor branch env start <branch> --confirm-previous-attempt <UUID>.

Stale confirmation is rejected; refresh and inspect rather than automatically retrying. Configuration, variant rendering, archiving, and deletion cannot bypass an active attempt. HA external repository removal with filesystem cleanup: true is deliberately unavailable: explicitly stop/inspect and use the existing branch-by-branch cleanup workflow instead of a filesystem-first bulk operation.

Remote development environments

Sometimes Agor can manage the branch but cannot host its development stack. The daemon may run in a locked-down container without Docker, the application may need more CPU or memory than the Agor host has, or the runtime may need access to a cloud-only network. A managed environment does not have to be a local process: its lifecycle commands can bridge to a remote development environment such as a GitHub Codespace, Coder or Gitpod workspace, DevPod target, Kubernetes namespace, or dedicated VM.

Agor does not ship native controllers for all of those providers. Instead, the current primitives support two integration shapes:

• In hybrid mode, a small repository-owned shell bridge calls the provider API or CLI and prints a structured Start result.
• In webhook-only mode, lifecycle URLs call a trusted external controller. The current webhook contract has the GET-only and authentication limitations described above, so it is not by itself a production-grade provider control plane.

Each command should finish rather than host a foreground server inside the executor. Remote does not require dynamic URLs: if your deployment has a predictable address, keep static app and health templates. When the provider assigns the address at startup, the script can report it from Start.

Agor’s own repository contains two working references to adapt:

• Railway: a repository-owned script that drives an explicitly bound Railway preview, checks ownership, and reports its URL.
• GitHub Codespaces: a launcher that manages a whole remote workspace rather than just an app deployment.

Vercel, a Kubernetes namespace, or your own VM are candidates for custom commands too. These are possibilities, not tested integrations; define provider-appropriate Stop and Nuke behavior rather than assuming every platform has a resumable server. There is no Agor provider SDK to install: you or your agent adapt a script, and those adaptations still need review.

Provider-neutral lifecycle pattern

A remote bridge should treat Start as reconciliation, not as unconditional creation:

1. Render a stable binding from trusted context such as branch.id, the exact pushed branch.ref, and a provider repository identity.
2. Rediscover provider state on every action. Do not rely on a permanent resource name or forwarded URL: remote workspaces can be stopped, renamed, deleted, or recreated outside Agor.
3. Validate the provider owner, repository, ref, and binding marker before resuming, stopping, deleting, or reading logs from a resource.
4. Create or resume the workspace, wait with a bounded timeout, then report the current access URLs.
5. Make Stop and Nuke idempotent. Stop normally retains remote disk; Nuke deletes only the rediscovered and revalidated resource.

Source transfer is a separate concern. If the remote provider clones from a Git host, the branch or commit must be pushed before Start. Do not silently fall back to the default branch, and do not make a lifecycle bridge auto-push under an ambiguous shared credential.

Before sharing a remote variant

• Trust the code you execute. A command that invokes a repo script grants that script the command’s credentials. Review script changes, not only the YAML, and shellQuote rendered string arguments.
• Keep secrets out of configuration. YAML, template overrides, rendered commands, logs, and Start results are not secret stores. Commands receive the invoking user’s Global environment variables.
• Choose the owner. On shared branches, agree who supplies provider credentials and pays for resources. A teammate pressing Stop runs with their own credentials, not the original starter’s.
• Scope every action to the branch. Never use wildcard or project-wide teardown in a shared provider project. Clean up the old environment before rendering a different variant.
• Plan for partial success. A timed-out command may already have allocated billable resources; rediscover before retrying and keep a recovery path. Stop may retain billable storage, and public URLs need their own access controls.

Reporting the App and health endpoints

Forwarded hostnames are often assigned only after the remote workspace starts. A shell bridge can publish them by emitting one control line on stdout:

AGOR_ENVIRONMENT_RESULT={"app":"https://preview.example.test","health":"https://preview.example.test/health"}

This is the same Runtime URLs from Start contract described above. The JSON schema is intentionally only {app?, health?}. Either key may be omitted:

• app is the browser destination. It may require the provider’s login.
• health is polled by the Agor daemon and should be returned only if that daemon can reach it. If it is omitted, Agor shows Started; health unavailable rather than claiming the environment is healthy.

A static app such as the provider dashboard is useful while Start is still running. A successful dynamic result replaces that fallback for the current lifecycle attempt. Stop, Nuke, or another Start clears/reconciles runtime URLs so Agor does not retain an old forwarded hostname.

Railway reference implementation

Agor’s repository wires its railway-sqlite and railway-docs variants in .agor.yml to launcher.mjs, a dependency-free, branch-local Node script with adjacent mocked API tests. The Railway launcher instructions  describe the image, service, domain, and persistent volume.

The SQLite preview application in this example is Agor itself; railway-docs serves only this docs website. Hosting Agor on Railway and using Agor to manage your app on Railway are different tasks; for your own app, replace the bootstrap and runtime details, not the lifecycle interface.

environment:
  variants:
    railway-sqlite:
      description: Opt-in automatic Railway preview
      start: >-
        node scripts/managed-environments/railway/launcher.mjs start
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}} --binding {{shellQuote branch.id}}
      stop: >-
        node scripts/managed-environments/railway/launcher.mjs stop
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}} --binding {{shellQuote branch.id}}
      logs: >-
        node scripts/managed-environments/railway/launcher.mjs logs
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}} --binding {{shellQuote branch.id}}
      # Optional: explicitly destructive removal of this preview and its data.
      nuke: >-
        node scripts/managed-environments/railway/launcher.mjs nuke
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}} --binding {{shellQuote branch.id}}
      app: https://railway.com

Automatic previews (opt-in)

The railway-sqlite variant runs ordinary branch-local Node scripts in scripts/managed-environments/railway. No npm install, SDK, PostgreSQL, or daemon-specific handler is needed. Edit the launcher in the branch to iterate. Railway builds the app from its pushed public GitHub branch, not your dirty checkout. Private source resolution is not supported by this example. The included runtime currently supports only preset-io/agor; Start validates the repository and branch with the same validator used by runtime checkout, before making provider requests.

Successful main CI also publishes a public preview dependency image. On a new deployment, the automatic launcher resolves its preview-runtime-main tag to an immutable digest and supplies it as AGOR_PREVIEW_BASE. Railway’s thin railway-preview stage keeps the branch’s startup scripts and dependency inputs; matching dependencies are reused, changed inputs trigger a frozen install. Application code still comes from the pushed branch. Before the first image is publicly available (registry 401/404), the same Dockerfile builds its local runtime-build base instead and reports the fallback. The Docker Hub repository must allow public pulls; no registry secrets enter branch builds. Rate-limit and network errors fail before provisioning rather than silently triggering an expensive cold build. Running previews are not redeployed when main publishes a newer base.

Start behaves like “ensure this branch’s preview is up”: create missing resources, safely reuse owned ones, and leave an owned running deployment alone. Creating a Git branch or selecting the variant creates no paid resources.

One-time operator setup:

1. Select an existing project authorized for previews. A dedicated preview-only workspace is recommended, but unrelated resources in the selected project are left untouched. Authorize Railway’s GitHub integration.

2. Save these in the invoking user’s secure Global environment variables:

   Variable	Value
   RAILWAY_AGOR_PROJECT_ID	Project UUID from its Railway dashboard URL (not the full URL). Workspace is discovered automatically.
   RAILWAY_API_TOKEN	Workspace-scoped token authorized for the preview project, or equivalent account token.
   RAILWAY_AGOR_ADMIN_PASSWORD	Preview bootstrap password: 15+ characters, at most 72 UTF-8 bytes.

   The script reads these variables from its process environment at execution time. Do not hardcode a project ID in this shared template: different users or organizations can choose different projects. Agor supplies the branch UUID, Git ref and repository; the script discovers the workspace. The project URL is a dashboard link, not the eventual app URL reported by Start.

   Environment-scoped RAILWAY_API_KEY/RAILWAY_TOKEN cannot provision across environments. Use Agor’s secure environment-variable widget for assisted setup; never paste secrets into chat or interpolate them into commands.

3. Import this branch’s .agor.yml in the repository environment editor, then select/re-render railway-sqlite. Old railway-preview:start markers are not executable commands. Editing launcher modules later needs no import.

4. Optionally run the launcher’s read-only check action (configuration, authorization and ownership, not source availability/readiness), push the application branch, then click Start when ready to incur preview costs.

The automatic preview sets AGOR_ADMIN_REQUIRE_PASSWORD_CHANGE=false alongside AGOR_ADMIN_PASSWORD, so newly bootstrapped admins can keep the operator-selected password at first login. Other deployments still require a change by default; generated passwords always require it. This only affects initial account creation: restarts never reset an existing password or clear an existing change requirement.

Trust boundary: branch code receives the credential’s full provider authority. Never inject production credentials into untrusted branches. Agor applies normal branch lifecycle permissions; the launcher is not an additional tenant-admin gate. The selected project, discovered workspace, repository and globally unique branch UUID scope version-2 ownership receipts; they do not claim separate tenant attestation. Branch authorization and credential access remain Agor’s responsibility. Provider ownership receipts are not a defense against malicious code holding the same provisioning credential.

Start creates an empty environment, environment-specific service, private volume at /home/agor/.agor and Railway domain on port 3030, without copying production secrets/data. Deterministic names and AGOR_PREVIEW_BINDING receipts live in Railway; no per-branch tracked binding edits or external database are needed. Controller credentials never enter the app. App/health URLs are reported after deployment admission; Agor’s health observer determines readiness, not command success. Runtime watch mode follows the pushed application branch.

Railway service creation can briefly add empty instances of the new service in other project environments. The launcher verifies those instances have no source, deployments or volumes, then removes only those new empty instances before configuring the preview. It never changes existing services. Interrupted service creation/cleanup fails closed and may require operator reconciliation. For strict separation with no transient instances in production, choose a preview-only project.

Stop preserves data and removes/cancels compute only. Repeat after draining if needed. Storage charges continue. Nuke permanently removes the owned service, volume and environment, never the project. Missing recorded volumes are not silently recreated. Partial cleanup can require manual Railway recovery.

Nuke saves a non-secret cleanup receipt in the owned environment before removing the service and waits for Railway’s asynchronous deletion to become visible. If it stops partway through, repeat Nuke to resume from that receipt; Start will not reuse a preview being deleted. Unknown deletion outcomes are observed rather than blindly retried. Older failures without a receipt, manually deleted services, or changed resource ownership still require manual inspection in Railway.

Serialize actions through one lifecycle controller per project. This simple launcher does not promise HA-safe concurrent starts or exactly-once creation. No mutation is automatically retried within an invocation. Inspect ambiguous results and allow provider state to settle before another action. Visible partials can be resumed; unresolved volume/domain/deployment markers fail closed. Initial environment/service creation has no external durable fence, so concurrent calls or retries before visibility can duplicate resources.

Capacity is three retained previews in the simplified setup (legacy JSON can configure 1–10), checked before creation rather than enforced as an atomic quota. Stopped previews count. Each app has one sfo replica, 2 vCPUs/8 GB limits and bounded restart retries; inventory reads cap at 100 resources. These are not dollar spending limits. Configure Railway spending controls. No automatic destructive expiry, branch-deletion or tenant-offboarding cleanup exists: clean up before revoking credentials or removing the branch.

See the launcher setup and limitations . webhook-only installations still reject shell commands.

Legacy RAILWAY_PREVIEW_CONFIG remains supported with version-1 receipts and dedicated-project rules; conflicting project settings fail closed. Do not remove legacy configuration to migrate retained resources without an explicit migration or cleanup: version-2 resource names differ.

Docs website preview

Choose railway-docs for a public Next/Nextra development instance of apps/agor-docs, with no Agor daemon, database or agent runtimes. It reuses the Railway lifecycle and ownership checks above, but requires only RAILWAY_AGOR_PROJECT_ID and RAILWAY_API_TOKEN in secure variables, not RAILWAY_AGOR_ADMIN_PASSWORD.

Push the branch first. A repo administrator imports the updated .agor.yml, then renders railway-docs on the branch; Start is the explicit paid-resource opt-in. The launcher reports the website root as both App and Health. The container runs in --watch mode, polling the pushed branch every 10 seconds; content/component/style changes hot-reload without rebuilding the deployment. Unpushed local edits are not included.

Dependency, lockfile, patch, runtime, Next/TypeScript configuration and docs build-script changes need push, then Stop/Start. Failed fetches or incompatible updates leave the last applied source running. Start on an already-running preview does not redeploy it. The production Pagefind index is not generated by this dev server, so full-text docs search is not a production-parity check.

Docs and SQLite previews have separate resource identities even on the same branch. Stop a running variant before switching to avoid leaving billable compute behind. Stop retains the docs checkout/cache volume and storage charges; Nuke removes only the owned docs preview, never the SQLite preview or project. Both count toward the retained-preview limit. These are unauthenticated public dev servers: use trusted branches and preview-only credentials, not private data. See the docs runtime details .

Migration from earlier Railway variants

railway-sqlite is the automatic application variant; railway-auto-sqlite was renamed. Import the updated .agor.yml, then select railway-sqlite to re-render saved branch commands (stop a running preview before switching). Existing automatic preview ownership and resource names do not change, so they remain reusable.

The former binding-based launcher, tracked bindings.json, volume-reset helper, and .railway SDK bootstrap tooling have been removed. Previously manual/bootstrap resources remain untouched and are not adopted by the new launcher. Manage or retire those resources explicitly in Railway; retain an older source revision if you need the old tooling. Reusing the variant name does not migrate their data. Do not run a stale saved command until you have reviewed and re-rendered it.

GitHub Codespaces reference implementation

Agor’s own repository includes an experimental, opt-in Codespaces example:

• the codespaces-sqlite .agor.yml variant
• agor-codespace-launcher.mjs, a dependency-free Node bridge over the official gh CLI
• the managed Codespaces devcontainer  and SQLite bootstrap

The essential variant shape is:

environment:
  variants:
    codespaces-sqlite:
      start: >-
        node scripts/managed-environments/codespaces/agor-codespace-launcher.mjs start
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}}
        --binding {{shellQuote branch.id}}
        --wait-seconds 1200
        --app-port 5000 --health-port 3000 --health-path /health
        --port-visibility public
        --emit-health public-only
      stop: >-
        node scripts/managed-environments/codespaces/agor-codespace-launcher.mjs stop
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}}
        --binding {{shellQuote branch.id}}
      nuke: >-
        node scripts/managed-environments/codespaces/agor-codespace-launcher.mjs nuke
        --repository {{shellQuote repo.github_slug}}
        --ref {{shellQuote branch.ref}}
        --binding {{shellQuote branch.id}}
      app: https://github.com/codespaces

Use shellQuote for every rendered value embedded in a shell command; it quotes the value as one POSIX shell argument instead of treating branch text as syntax. The reference launcher requires Node, an authenticated gh CLI with Codespaces access, a registered github.com remote, and a pushed branch ref. It derives the App URL from live Codespaces port metadata. With --emit-health public-only, it reports health only when GitHub says that forwarded port is public; private Codespaces URLs remain authenticated App links and are not polled by Agor.

The repository’s experimental variant explicitly passes --port-visibility public, so after the SSH readiness probe succeeds the launcher asks GitHub to make both 3000 and 5000 public. GitHub may reject that request under an organization or repository policy, in which case Start fails with a policy diagnostic instead of pretending the preview is reachable. Public forwarded ports are available to anyone who knows their URLs, without GitHub authentication, and GitHub resets them to private when a Codespace restarts . Start therefore re-reads and reapplies the requested visibility every time.

This is safe only as an explicit disposable-preview choice, not merely because the source repository is public. Port 3000 exposes the whole Agor daemon, not just /health. The Codespaces bootstrap avoids the repository-wide admin/admin development credential by generating a different mode-0600 password per Codespace. Retrieve it from that Codespace, sign in, and change it immediately:

cat ~/.agor-managed/bootstrap-admin-password

The value never enters .agor.yml, launcher output, dynamic URLs, or the Git workspace. An older Codespace/SQLite volume created before this behavior still has its old credential: rebuilding does not reset an existing user. Change that password before public exposure, or Nuke and recreate the disposable Codespace.

Every invocation of the launcher’s Start action is a reconcile, not an unconditional Create. This matters after a timed-out/failed Agor Start: press Start again and the launcher attaches to the still-existing marker-bound Codespace. It validates owner/repository ID/ref, resumes it if stopped, waits for SSH and /health, reapplies port visibility, and returns fresh URLs. A deleted resource is recreated and a duplicate or identity drift fails closed. Once Agor records the environment as running, its Start control is disabled; Restart deliberately runs Stop then Start, retaining and resuming the same Codespace rather than creating a second one. Neither path pulls newer Git commits into an already-running workspace or rebuilds its devcontainer; source synchronization remains a separate explicit operation.

The managed devcontainer explicitly installs the Dev Containers sshd feature. This is required for the launcher’s authenticated /health check and runtime logs: the official gh codespace ssh command cannot connect to a custom image that has no SSH server. If a Codespace was created from an older version of the devcontainer, rebuild its container or Nuke it and press Play again.

While a Codespace is building, use Cmd/Ctrl+Shift+P → Codespaces: View Creation Log in the browser/VS Code client, or follow the same provider log from another authenticated machine:

gh codespace logs -c <codespace-name> --follow

gh codespace logs also relies on the Codespaces SSH transport for a custom devcontainer. Agor’s Logs action therefore returns a bounded snapshot when that transport is ready, reports it as temporarily unavailable earlier in creation, and skips all remote log commands for a stopped Codespace so a log read cannot resume billable compute. Once the Codespace is available, Logs also retrieves the nested Compose log tail. From a Codespace terminal, you can inspect the stack directly:

docker compose -p agor-codespaces-sqlite ps
docker compose -p agor-codespaces-sqlite logs --tail=100 --follow

The first Play builds Agor’s development image inside the Codespace. Later starts of the same Codespace reuse its Docker layers unless dependency inputs changed. The reference variant gives the cold path a bounded 20 minutes; missing-SSH configuration errors fail immediately rather than consuming that deadline. Standalone Agor lifecycle execution has a fixed 25-minute safety bound, leaving time for launcher setup and result reporting without adding per-variant timeout or retry machinery. Delegated HA jobs retain their shorter operator-configured execution envelope. GitHub Codespaces prebuilds can accelerate the outer devcontainer, but GitHub does not make Docker-in-Docker available during prebuild creation , so a prebuild cannot absorb this nested image build.

This reference is deliberately narrower than a production shared controller: it uses the controller’s current GitHub actor, a process-local lock/state directory, and is not a Cloud/HA credential-sponsorship or distributed-leasing design. Never put a GitHub token in .agor.yml, template overrides, branch data, URLs, or launcher output. A production integration should use a tenant- and actor-scoped credential store plus a durable provider binding and lifecycle lease.

Stop preserves the Codespace and its SQLite volume. Before rendering a different variant, Nuke the Codespaces variant (or delete the Codespace in GitHub); after a variant switch Agor intentionally does not retain the old variant’s cleanup command.

See also

• Containerized execution runs the rendered commands inside isolated containers.
• Multiplayer and execution isolation covers how RBAC and execution modes gate who can Start / Render / edit env config.
