Agor MCP Server

Anything a user can do in Agor, an agent can do too. The same daemon that serves the UI’s REST and WebSocket APIs also exposes a built-in Model Context Protocol (MCP) server, a structured automation surface that turns every session into a self-aware orchestrator.

This is the foundational layer: teammates, scheduled prompts, cards, artifacts, and the message gateway are all built on top of it.

The other doorway: if you’re driving Agor from outside an agent (TS/JS scripts, custom dashboards, internal services), reach for the official @agor-live/client instead. Same daemon, same types, REST + Socket.IO + a reactive session API.

Key Ideas

• Agents as first-class users: Every MCP tool wraps a FeathersJS service. Sessions, branches, boards, zones, users, environments. Anything you can click or reach via the agor CLI is available as JSON-RPC.
• Self-aware sessions: Each session is auto-issued a scoped MCP token, so the agent already knows which session, branch, and board it’s in, and can act on that context.
• No separate server: MCP is part of the daemon. Nothing to install, nothing extra to run.
• Remote access: External agents and dashboards can connect over HTTP to drive Agor (create boards, branches, or even invite new users).

MCP is enabled by default and every session already has credentials injected. No setup required for in-Agor agents.

Capabilities At a Glance

Because tools route through FeathersJS services, every action emits the same events the UI listens to. Real-time updates appear instantly for everyone watching the board.

Managing a Session’s pending queue

An orchestrator can revise a child’s pending work while its current Task keeps running. Discover these tools in the sessions domain (search for queued):

• agor_tasks_list({ sessionId, status: "queued" }) returns pending Tasks in dispatch order, including full task_id, queue_position, and prompt text. Follow nextOffset while hasMore to read the complete queue.
• agor_tasks_cancel_queued({ sessionId, taskIds }) removes selected queued Tasks in one atomic batch. Every ID must still be queued in that Session; otherwise none are removed. This is removal, not a stopped/failed execution: no completion callbacks or reports are generated.
• agor_tasks_reorder_queued({ sessionId, expectedTaskIds, taskIds }) changes dispatch order. expectedTaskIds must equal the complete current queue in its observed order; taskIds must be an exact permutation. No duplicate, missing, foreign-Session, or nonqueued IDs are accepted. Empty lists are valid only for an empty queue.

Always name the target Session explicitly; the caller’s current Session is not an implicit target. Task lists use full UUIDs returned by the list tool. Both mutations require workspace Member access and the existing Branch Manager capability used by Task deletion (normal administrator policy still applies). Prompt access alone is insufficient. Delegated Session credentials retain the acting user’s permissions; child ancestry grants no additional rights, and no operation crosses the authenticated tenant boundary.

For example, after listing a child’s queue as [A, B, C] (replace these letters with the returned full Task UUIDs):

// New data invalidates B. Active work is untouched.
agor_tasks_cancel_queued({ sessionId: childId, taskIds: [B] });
// Using the resulting queue [A, C], prioritize C.
agor_tasks_reorder_queued({
  sessionId: childId,
  expectedTaskIds: [A, C],
  taskIds: [C, A],
});

Both return { session_id, queue: [{ task_id, queue_position }], cancelled_task_ids }, authoritative at commit, not a reservation. Admission, dispatch, cancellation, or another reorder may change it immediately afterward. A stale order or ineligible ID produces an actionable conflict (HTTP 409, TASK_QUEUE_CONFLICT in the service error data). Reread the queue and reconsider priorities before retrying; do not silently reuse the old snapshot. Malformed or duplicate IDs are invalid input (HTTP 400).

Only queued Tasks can change. Dispatching, running, permission/input waits, stopping, and finished Tasks are never stopped, edited, or deleted by these tools. New prompts append after the reordered tail. Failure-held queues remain held: these tools do not resume a Session. Existing realtime Task events update the UI; no separate queue UI or pause control is needed.

The shared public Tasks service exposes the same operations as cancelQueued and reorderQueued, with session_id, task_ids, and (for reorder) expected_task_ids. Generic Task patches remain executor-only and queue_position remains server-owned.

Interrupt obsolete work and supply urgent information

Use the existing prompt, queue-management, and stop tools in that order. This is not an atomic stop-and-clear operation, nor an in-place injection into the running Task. Each tool retains its own authorization requirements.

1. Capture the original active Task ID from agor_tasks_list for the child before changing its queue. Keep this ID (originalTaskId) for the conditional Stop; do not replace it with a successor’s ID. While the child is still active, call agor_sessions_prompt with mode: "continue" and updated instructions. Inspect the result: continue queues behind active work, but if the child has already become promptable, the update may dispatch immediately. Do not assume it is still queued.
2. Inspect/re-read the pending queue with agor_tasks_list({ sessionId: childId, status: "queued" }), following all pages. Cancel obsolete queued IDs with agor_tasks_cancel_queued as appropriate. Use the resulting queue or re-read it after further changes.
3. Move the update to the front with agor_tasks_reorder_queued: expectedTaskIds is the exact observed order; taskIds contains the same IDs with the update first. Handle any conflict by re-reading and reassessing, not by blindly retrying the old snapshot.
4. ONLY THEN call agor_sessions_stop({ sessionId: childId, expectedTaskId: originalTaskId, reason: "New data invalidates the current task; prioritized updated instructions" }). Stop preserves and drains the queue. Stopping before rearranging it risks dispatching stale work.

For example, if the update returned Task ID U and a fresh queue read showed [A, B, U], where B is obsolete (letters stand for full Task UUIDs):

// First read the child's active Task and retain its ID as originalTaskId.
agor_tasks_list({ sessionId: childId });
// Then, while the child is active:
agor_sessions_prompt({
  sessionId: childId,
  mode: 'continue',
  prompt: 'New evidence invalidates the current approach. Preserve existing edits and ...',
});
// Confirm the returned update U is queued; read the complete current queue.
agor_tasks_list({ sessionId: childId, status: 'queued' });
// Only if that read shows [A, B, U], and B is still obsolete:
agor_tasks_cancel_queued({ sessionId: childId, taskIds: [B] });
// Only if the resulting/current queue is [A, U]:
agor_tasks_reorder_queued({
  sessionId: childId,
  expectedTaskIds: [A, U],
  taskIds: [U, A],
});
// Only after successful rearrangement and reassessing the current active work:
agor_sessions_stop({
  sessionId: childId,
  expectedTaskId: originalTaskId,
  reason: 'Obsolete approach; update U prioritized',
});

After verified termination, the prioritized update can run as the next turn, provided it is still the queue head. Delivery is not guaranteed instantaneous. An accepted/pending stop is not confirmed termination; inspect the stop outcome and re-read Session/Task state rather than treating acceptance as proof that the old executor has stopped. Existing edits made by the running Task are preserved: stopping does not roll them back.

There is no atomic guarantee across these separate calls. Active work may finish, another task may dispatch, or another caller may change the queue between any steps—even between a successful reorder and stop. On unexpected dispatch or queue changes, re-read and reconsider which work should be stopped before proceeding. The optional expectedTaskId accepts a full UUID or short ID and restricts Stop to the original execution. If the original completed and U started, Stop returns condition_changed without terminating U. On that mismatch, never fall back to an unconditional Stop or substitute U’s ID. An already-idle Session remains an idempotent already_idle result. Queue tools cannot cancel or reorder a Task that has already left queued.

Progressive tool discovery

When mcp_tool_search is enabled (the default), tools/list intentionally returns only three stable facade tools:

• agor_search_tools browses domains or searches concise tool summaries.
• agor_get_tool_details returns the exact schema for one selected tool.
• agor_execute_tool invokes the selected domain tool with validated arguments.

The MCP 2026-07-28 revision adds server/discover for protocol capabilities and standard cache hints for tool lists. It does not replace Agor’s semantic catalog search, domain filters, annotation filters, or detail-on-demand flow. Agor keeps those features while using the standard discovery response and private 60-second cache hints for its deterministic visible catalog.

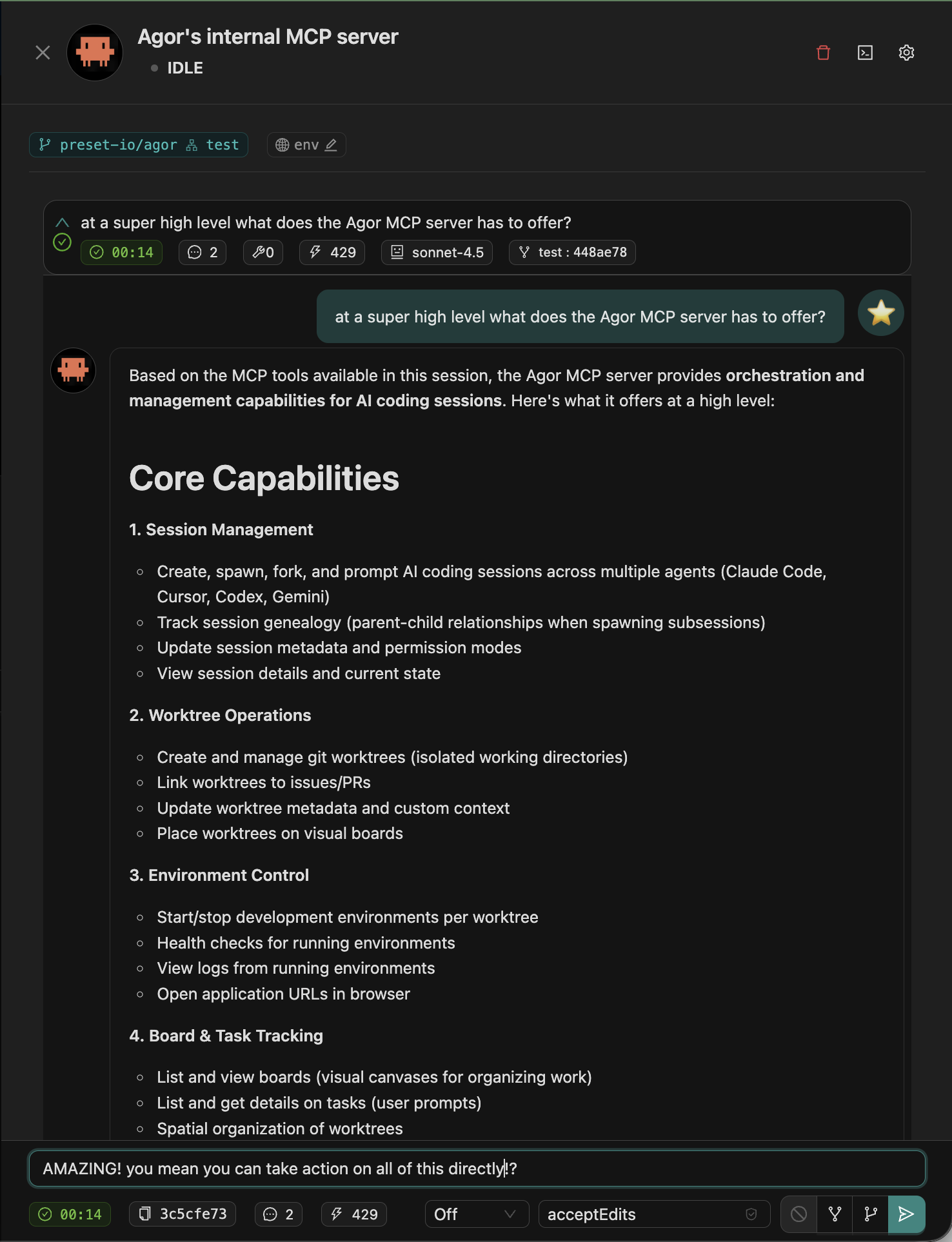

Self-Aware Agents Inside Agor

When you launch a session in Agor, the SDK config includes the internal MCP server automatically:

{
  "type": "http",
  "url": "http://localhost:3030/mcp",
  "headers": {
    "Authorization": "Bearer <mcp_token>"
  }
}

The daemon requires the token in the Authorization: Bearer header. Query- string tokens are rejected. Don’t put secrets in URLs, where they’d leak into access logs and browser history.

From there agents can:

• Discover their current session and branch context.
• Spawn subsessions to fan out work (e.g., spin up multiple coders to process a checklist).
• Inspect the board layout to decide where to place new branches or sessions.
• Update their own user profile to signal who is speaking.

This self-awareness is what lets agents behave like team members instead of detached copilots.

Automation Examples

Branch materialization is asynchronous by default. For the most discoverable one-call flow, an orchestrator can pass waitForReady: true (and optionally waitTimeoutMs) to agor_branches_create, then create a session only when _readiness.outcome is "ready".

For a retry-safe flow—particularly when a non-idempotent create request might be replayed—use:

1. agor_branches_create and retain the returned branch ID.
2. agor_branches_wait_for_ready; repeat after a structured timeout when necessary.
3. Call agor_sessions_create only when _readiness.outcome is "ready".

Both wait paths check immediately and then once per second. The default wait is 45 seconds and a single call is capped at 5 minutes. Values longer than the MCP client’s request deadline require a matching client or host timeout. After a timeout, keep the returned branch ID and safely call the read-only wait tool again. Losing a waited create response does not cancel the already-created branch, so do not blindly replay branch creation.

• Repository bootstrap: “Clone this GitHub repo, create a branch off main, and start the dev environment automatically.”
• Zone-based workflows: “Create a ‘Human PR Review’ zone on the board, positioned based on existing zones, with a trigger that prompts for review feedback.”
• Mass subsession fan-out: “Read context/js-to-ts-refactor, split the file list, create a subsession per chunk, and report back when done.”
• Bulk account provisioning: Paste a CSV of emails; the agent calls MCP to create users and invite them automatically.
• Issue triage pipeline: Source GitHub issues by label, triage them, and create branches linked to each issue, dropping them onto the active board as cards.
• Environment orchestration: Start/stop branch environments via MCP before delegating work to collaborators or other agents.

Because MCP calls are just JSON-RPC, complex workflows can be scripted once and reused by any tool that speaks the protocol.

agor_repos_import_environment exposes the repository editor’s admin-only .agor.yml import. For its replacement semantics and the import/render/lifecycle sequence, see the agent configuration workflow.

Environment MCP tools call the same branch environment service as the UI. If an operator sets execution.managed_envs_execution_mode: webhook-only, MCP agor_environment_start, agor_environment_stop, agor_environment_logs, and agor_environment_nuke reject rendered shell commands and only invoke explicit HTTP(S) webhook URLs. See Environments: webhook-only mode.

External Agent Access

External clients connect to the same HTTP MCP endpoint. Use the hosted URL https://<your-agor-host>/mcp, or http://<daemon-host>:3030/mcp for a default self-hosted daemon. In Agor, open User Settings → Personal API Keys, create a key, copy it once, and store it in a password manager or your shell’s secret-loading mechanism:

export AGOR_API_KEY='…'

Agor authenticates personal keys with the X-API-Key header. Never paste a real key into a command, committed config, issue, or chat transcript.

Claude Code

This user-scoped registration works for the hosted sandbox:

claude mcp add -s user -t http agor-sandbox https://agor.sandbox.preset.zone/mcp \
  -H 'X-API-Key: ${AGOR_API_KEY}'

The single quotes are important: your shell passes the placeholder rather than the secret. Claude Code stores ${AGOR_API_KEY} in its user configuration and expands it when it loads the MCP server, so the variable must also exist in the environment that launches Claude Code.

Use -s local (the default) for private configuration in only the current project, or -s project only when the shareable .mcp.json contains the placeholder—not a secret. Check the registration with:

claude mcp get agor-sandbox

Codex

Codex supports environment-backed HTTP headers in ~/.codex/config.toml:

[mcp_servers.agor]
url = "https://agor.sandbox.preset.zone/mcp"
env_http_headers = { "X-API-Key" = "AGOR_API_KEY" }

env_http_headers maps the header to an environment-variable name; do not use http_headers with the literal key. The global file is shared by Codex CLI, the IDE extension, and the Codex app. For one trusted repository, put the same table in .codex/config.toml instead. Restart the client after changing its environment or configuration, then use /mcp or codex mcp list to inspect the connection.

Optional session context

An external personal API key identifies you but does not imply an Agor session. Most tools accept explicit IDs. To make current-session tools work, add X-Agor-Session-Id: <session-id> as another header. The session must be visible to your user. Do not copy Agor’s short-lived internal session JWT into an external client; those tokens are injected automatically into sessions that Agor launches.

That is the key distinction: inside an Agor session, the endpoint, scoped JWT, tenant, user, and session context are attached automatically. From an external client, you configure the endpoint and personal API key yourself, and session context is absent unless you add it.

Built-in transport contract

Agor’s built-in endpoint uses the stable TypeScript MCP SDK v2 in a dual-era, stateless request/response configuration:

• Modern 2026-07-28 clients use the handshake-free per-request metadata contract. They may call server/discover; ordinary RPC results are bounded JSON and include standard cache hints where required.
• Initialization-era clients through 2025-11-25 continue to use initialize and notifications/initialized. The compatibility path may return one bounded, request-scoped SSE response for a legacy request. It does not create or retain a transport session.
• Neither era receives Mcp-Session-Id. Agor does not retain a transport Map or timer, open a standalone server event stream, or send transport-level progress, logging, subscription, or tool-list-change notifications.
• Authenticated GET /mcp and DELETE /mcp return 405 Method Not Allowed (requests still pass the normal authentication boundary first). Streamable HTTP clients may optimistically try GET; compatible clients treat 405 as the server declining that optional stream.
• Authentication, trusted tenant identity, current user data, and optional X-Agor-Session-Id access are reconstructed and authorized on every request.

This contract applies only to Agor’s built-in endpoint. MCP servers that users configure under Settings → MCP Servers remain separate external services; Agor still passes their configured stdio, Streamable HTTP, or legacy SSE transports directly to the selected executor.

Version selection is protocol-driven rather than an Agor-specific client switch. V2 clients can probe with server/discover and select the modern era; older clients send initialize and are served by the stateless compatibility arm. Both paths use the same authenticated server factory and tool definitions.

Smoke test and troubleshooting

Ask the client to call agor_search_tools with no arguments, then agor_boards_list with { "limit": 1 }. A successful response should show tool domains and one accessible board page.

For positioned branches/cards, use agor_boards_get with includeEntities: true. Optional entityZoneId, entityType, entitiesLimit, and entitiesSkip filter and page the authorized entities. Archived branches are excluded before counting and paging unless includeArchived: true; card entities are preserved. Omitting the limit retains the existing all-matched-entities behavior, so prefer an explicit limit for large boards. entities_pagination.total counts the filtered visible entities, not just the returned page.

The execution facade reports malformed target-tool arguments with code: "invalid_tool_arguments", validation_stage: "tool_input", and bounded field/code issues. Fetch agor_get_tool_details, correct the indicated fields, and retry. A service_validation_failed response instead identifies downstream service validation; it does not by itself mean the agent supplied a bad payload. If the payload matches the published tool schema, report the tool/service mismatch rather than retrying unchanged. These failures retain the error/tool fields and MCP isError: true; diagnostic issues omit input values. Direct tool calls retain the MCP SDK’s native input-validation errors.

• 401: confirm AGOR_API_KEY exists in the environment that launched the client, the header is exactly X-API-Key, and the key has not been revoked. Re-register if the client stored a literal secret or an unexpanded shell expression.
• Proxy or TLS errors: verify the /mcp URL is reachable from the client, configure its supported HTTP_PROXY/HTTPS_PROXY settings, and install your organization’s CA rather than disabling certificate verification.
• Unsupported transport or interpolation: use Streamable HTTP (not stdio or legacy SSE). If a client cannot resolve environment-backed custom headers, use a supported secret store or a local proxy that injects the header; do not commit the key as a static header.

Client syntax is based on the current official Claude Code MCP documentation  and Codex MCP documentation .

Multi-tenant authentication boundary

The default multi_tenancy.mode: static behavior is unchanged: MCP requests use multi_tenancy.static_tenant_id, and clients do not send a tenant header.

In hosted required_from_auth deployments:

• Internal MCP session JWTs carry a signed tenant binding. The daemon verifies that binding before it reads the session or user, and a token cannot be replayed with another tenant header.
• Personal API keys are opaque and do not contain a signed tenant. Using them at /mcp therefore requires multi_tenancy.trusted_header; the trusted reverse proxy must remove any client-supplied value and set the header from its authenticated routing decision. It must send exactly one tenant value; duplicate or comma/list-valued tenant headers are rejected. Do not expose the daemon directly when this mode relies on a trusted header.
• If more than one tenant signal is present, all signals must agree. Missing or conflicting identity fails closed before tenant-owned authentication data is queried.
• The built-in endpoint retains no transport context. Every POST resolves the tenant, authenticates and reloads the user, and authorizes any optional Agor Session independently. An Mcp-Session-Id is never a source of identity or authority.

Tenant identity is ambient for the MCP operation, but it does not hold a database transaction open. Individual service and repository calls use short tenant-scoped units of work.

Best Practices

• Keep permission policies tight. MCP calls respect Agor’s permission system. Configure approvals so agents only do what the team expects.
• Design idempotent workflows. Make repeated calls safe; agents may retry when handling errors.
• Log agent activity. Sessions capture every MCP action they trigger, making reviews and audits straightforward.
• Reuse concept files. Agents can load context/ docs via MCP, ensuring automations stay aligned with team conventions.

MCP Tokens

MCP session tokens are short-lived JWTs (aud agor:mcp:internal) embedding the session (sub), authenticated caller (uid), tenant (tid), a per-issuance ID (jti), and an expiry (exp). A still-valid token may be reused from a cache keyed by tenant, session, and user; otherwise GET /sessions/:id or POST /sessions mints a new one.

There is no revocation mechanics, no per-jti ledger, no session-generation counter. The authorised blast radius of a leak is bounded by exp (default 24h). Validation additionally rejects tokens whose session has been deleted from the signed tenant. Tokens issued before the tenant binding was introduced are rejected and are replaced the next time the session is fetched or created. These session tokens are for daemon-to-executor use; external clients should use personal API keys rather than treating this JWT format as a general-purpose authentication protocol.

Access gating

Because an MCP token binds uid to the authorized caller and lets the bearer act as that user on the MCP channel, it is only issued to callers who are allowed to receive a token for the session:

• GET /sessions/:id first applies normal session and branch authorization, then issues a caller-scoped token to any authenticated member+ or to the executor’s service identity (role: 'service', used when spawning the child process). The caller need not be the session creator: MCP tools continue to act as that caller and enforce their normal authorization checks.
• For POST /sessions, the caller is the creator by construction, so member+ is the only gate here.
• Callers with the account role viewer never receive an mcp_token on either path. They cannot prompt via REST either, so MCP would be useless for them regardless.

Config knobs

execution:
  # Token lifetime — keep short to cap the damage from a leak.
  mcp_token_expiration_ms: 86400000 # 24h (default)

Troubleshooting

If an external client receives an authentication error, check that it is using an Agor personal API key—not a browser login token or another provider’s API key—and sending it through a supported authentication header.

Agor manages internal session tokens automatically. If authentication errors persist in an Agor-launched session, contact your administrator. Do not share tokens or paste them into logs or support messages.

Related Reading

• Sessions & Trees (how agents spawn, fork, and ask side questions through MCP)
• Teammates (long-lived AI teammates that drive Agor through MCP)
• Scheduler (cron-style triggers that fire prompts via the same surface)
• TypeScript Client (the non-agent doorway: drive Agor from JS/TS apps, scripts, and services)
• Architecture: Agor as an MCP Server
• SDK Comparison

Branch cleanup

agor_branches_clean({ branchId }) requests the repository-approved cleanup command. It requires branch Manager/owner authority and write access; disabled policy, effective protection, outstanding tasks/uploads, and active environments block it. The default command is git clean -fdX (ignored files only), but cleanup is disabled until a repository administrator enables it. Custom command settings are retained but cannot execute until descendant containment is supported.

The response is { branch_id, operation_id, status: "accepted" }. Inspect the branch’s workspace_operation for completion or a safe failure/unknown outcome; acceptance does not prove files changed. There is no force, command/path override, dry-run, or built-in age threshold. Never automatically retry an unknown operation. See Branch cleanup for runtime limits and recovery.
