Artifacts

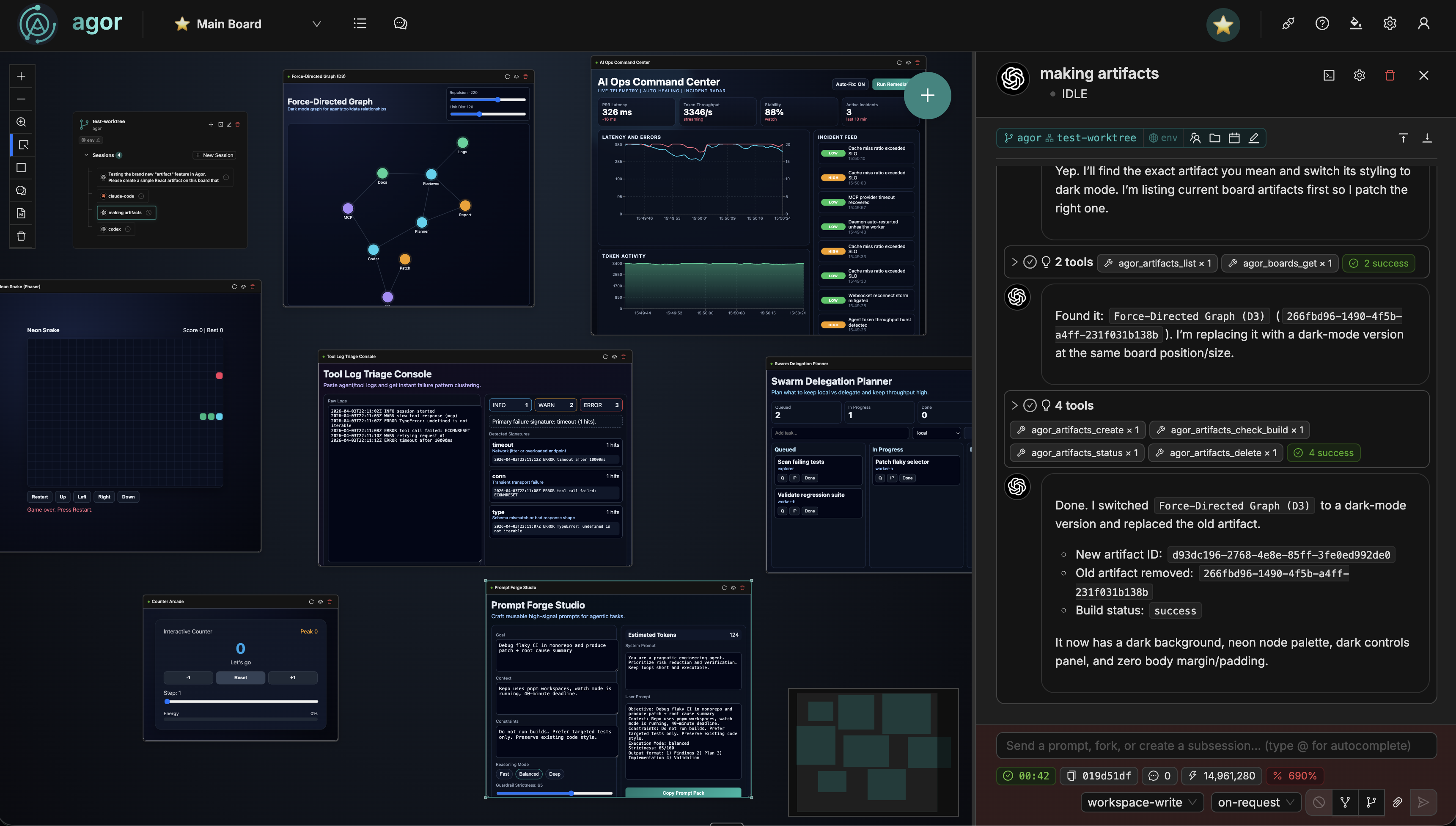

Artifacts are live, interactive applications that agents create and render directly on the board canvas. An agent scaffolds a small app via MCP, writes code into it, and you see it running — no deploy, no preview URL, no context switching.

Under the hood, artifacts are powered by Sandpack, the open-source in-browser bundler by CodeSandbox. A directory of source files inside the worktree gets compiled and rendered live in the browser — no server-side build step needed. The agent writes code, the board shows the result.

How it works

1. Agent writes a folder of ordinary source files (a regular package.json, App.tsx, etc.) — typically inside the worktree so the code is version-controlled.
2. Agent calls agor_artifacts_publish with the folder path, the board, the Sandpack template, and (optionally) declarative metadata: requiredEnvVars, agorGrants, sandpackConfig. The daemon serializes the file map into the database.
3. The artifact appears on the board as an interactive node with a live Sandpack preview.
4. Agent edits files and republishes with the same artifactId. The board hot-reloads via WebSocket.
5. You interact with the running app directly on the canvas — click buttons, fill forms, see state updates.

Artifact anatomy

Each artifact is a stored file map plus a small set of declarative metadata columns. The folder on disk is just the staging area an agent writes before calling publish — no Agor-specific sidecars required.

File map (shipped to the browser):

/package.json          # Standard package.json — dependencies live here
/App.tsx               # Source files (varies by template)
/styles.css
/.env                  # Synthesized at view time; never persisted (see below)

Stored metadata (DB columns; not in the file map):

• template — Sandpack template (react, react-ts, vue3, …).
• sandpack_config — Author-controlled SandpackProvider props (template, customSetup, options). Sanitized on write.
• required_env_vars — Names of env vars the artifact needs (e.g. ["OPENAI_KEY"]). The daemon synthesizes a per-viewer .env at render time.
• agor_grants — Declarative daemon capabilities (agor_token, agor_api_url, agor_proxies, …).
• agor_runtime — Controls injection of the daemon-side agor-runtime.js (which powers agent DOM introspection via agor_artifacts_query_dom). Enabled by default; opt out per-artifact with { enabled: false }. The runtime ships as an iframe-level <script> tag via Sandpack’s externalResources, so it works regardless of which user files exist (no entry-file detection, no file mutation, no template-specific gotchas).

On the board:

• Header — Artifact name with a trust badge (Yours/Trusted/Untrusted), an interact toggle (eye icon), and a 🔒 lock affordance to open the consent modal when the artifact is untrusted.
• Preview — Live Sandpack renderer showing the running application.
• Legacy banner — Old-format artifacts (those still carrying sandpack.json / agor.config.js) render in safe-degraded mode with an inline upgrade prompt you can hand to an agent.

Use cases

The possibilities are genuinely endless. Artifacts are a general-purpose way for agents to express themselves visually and interactively — any time you need something rendered, an artifact can do it.

The key advantage over having an agent build a regular app in a folder is that it’s right there on your board. No deploy step, no preview URL, no context switching. You ask for a change, the agent writes code, and you see the result update live. It’s the tightest iteration loop you can get.

If you’ve used artifacts in Claude Desktop or ChatGPT Canvas, the concept is similar — rich interactive windows embedded in your conversation. But here they live on a multiplayer spatial canvas where multiple agents and humans collaborate side by side.

The most basic use case is anything where you need visual feedback during agent collaboration. Writing an article and want to see it rendered? Building a form and want to click through it? Sketching a chart and want to see the data? If you need to see it while you work on it, artifacts are the answer.

Custom data visualization

This is the killer app. Things that would take a D3.js expert days, an agent can scaffold in minutes.

• Interactive dashboards — Real-time charts, metrics, and KPIs rendered live on the board. Ask “show me API latency by endpoint” and watch it materialize.
• Data explorers — Filterable, sortable tables with search. Feed in a dataset and get an interactive viewer instead of squinting at terminal output.
• Network and graph visualizations — Force-directed graphs, dependency trees, org charts. Complex visual structures that are nearly impossible to convey in text.

Developer tools

• Live component playground — Iterate on a React component with your agent and see changes instantly. Like a mini Storybook embedded in your board.
• API playground — A form-based endpoint tester with response viewer. Build one per service your team works with.
• Schema and architecture visualizer — Interactive ER diagrams, service topology maps, data flow diagrams. Turn abstract architecture into something you can point at.

Design iteration and prototyping

• UI mockups — “Sketch me a settings page for feature X” produces an interactive prototype right on the board, not a static screenshot.
• Content authoring — Write a blog post, doc page, or marketing email with your agent and see it rendered live as you iterate. The most natural artifact use case.
• Landing page drafts — Quick marketing page iterations without touching production. Get stakeholder feedback before a single line hits your real codebase.

Business operations

Artifacts are not just for developers. Any role that needs a custom, purpose-built UI can get one in minutes.

• Contract redline viewer — Legal gets an interactive diff showing proposed changes with accept/reject affordances, instead of emailing Word docs back and forth.
• Deal calculator — Sales gets a pricing configurator with sliders for seats, tiers, and discounts, showing ARR impact in real time.
• Compliance checklist — Ops gets an interactive onboarding tracker for a specific customer implementation, tailored to exactly what that deal requires.
• Customer health scorecard — CS gets a single-page view pulling data from multiple sources that no single SaaS tool provides.

Ephemeral SaaS alternatives

When you need a custom workflow but your existing tools (HubSpot, Salesforce, Jira) are too rigid for the situation:

• Custom approval forms — Replace a 15-click SaaS workflow with a purpose-built form that does exactly what you need.
• Cross-tool aggregator — Pull data from CRM, usage metrics, and support tickets into one unified view.
• QBR and report builder — Agent pulls metrics from multiple sources and renders presentation-ready charts. No more copying numbers between tabs.
• Release notes generator — An interactive editor that pulls from git log and PRs, letting you format customer-facing comms without context switching.

Templates

Artifacts support several Sandpack templates:

Agents can also provide custom files and dependencies at creation time — the template just determines the default scaffold.

MCP tools

Agents manage artifacts through Agor’s MCP tools:

The typical agent workflow: publish the folder, iterate by editing files locally and republishing with the same artifactId. To pick up where you left off from another worktree, land the artifact back to disk first.

Interacting with artifacts

Artifacts live on the React Flow canvas, which means mouse events need careful handling:

• Default mode — Canvas zoom/pan/drag works normally over the artifact. The preview is visible but non-interactive
• Interact mode — Click the eye icon in the header to enable direct interaction. Mouse events pass through to the iframe so you can click buttons, scroll, and type

This toggle prevents the iframe from capturing canvas navigation while still letting you use the running app when needed.

Managing artifacts

Settings > Artifacts provides a management view for all artifacts across the instance. From there you can:

• View artifact metadata (name, template, build status, worktree, board)
• Edit name and description
• Delete artifacts (removes filesystem directory, board placement, and database record)

Artifacts are created exclusively by agents via MCP — there’s no manual creation UI. The Settings table is for oversight and cleanup.

Beyond frontend

Sandpack’s Nodebox runtime can execute Node.js code directly in the browser, with out-of-the-box support for frameworks like Next.js, Vite, and Astro. This means artifacts aren’t limited to pure client-side apps — you can prototype lightweight full-stack patterns too. The main limitation is that Nodebox can’t access raw sockets, so native database drivers (Postgres, MySQL, MongoDB) won’t work in-browser.

For anything that needs a real backend, the artifact is still a great starting point — the code is just files in a directory.

Secrets and daemon capabilities

Artifacts get secrets and daemon capabilities through two declarative fields on the artifact row, with a TOFU consent flow for non-self artifacts:

• requiredEnvVars — names of env vars the artifact needs.
• agorGrants — capabilities the daemon will inject (JWT, daemon URL, vendor proxy URLs, etc.).

At render time the daemon resolves consent, looks up the viewing user’s values, and synthesizes a .env file into the served file map (never persisted). Apps read the values via the standard bundler convention.

Declaring what an artifact needs

agor_artifacts_publish({
  folderPath: ".agor/artifacts/staging/openai-chat",
  boardId: "01924f3b-...",
  name: "OpenAI Chat",
  template: "react-ts",
  requiredEnvVars: ["OPENAI_KEY"],
  agorGrants: { agor_token: true, agor_proxies: ["openai"] },
});

Reading injected values in app code

The daemon prefixes the synthesized .env keys per template — each bundler has its own hard-coded allowlist (CRA only inlines REACT_APP_*, Vite only inlines VITE_*, etc.). Apps use the standard idiom for their template:

Right now only the react / react-ts mapping has been exercised against a live artifact. The other rows are inherited from the original artifact-format proposal and may need adjustment when an artifact in that template family is first published; treat them as a starting point, not a contract.

// react / react-ts (CRA)
const apiKey = process.env.REACT_APP_OPENAI_KEY;
const agorToken = process.env.REACT_APP_AGOR_TOKEN;
const proxyUrl = process.env.REACT_APP_AGOR_PROXY_OPENAI;

// Best-effort inherited mapping for vue3 / svelte / solid (not yet
// verified end-to-end — see the status table above):
// const apiKey = import.meta.env.VITE_OPENAI_KEY;

if (!apiKey) {
  return <ConfigurePrompt name="OPENAI_KEY" />;
}

Available agor_grants

TOFU consent

When the viewer is not the artifact’s author, the daemon won’t inject secrets or grants without an explicit trust grant:

1. Untrusted state — The artifact renders with empty .env values and shows a Untrusted badge in the header.
2. The viewer clicks 🔒 to open the consent modal. The modal displays the artifact’s source files (with an inline preview pane), the requested env var names, and the requested grants.
3. The viewer picks a trust scope — just-once / this-artifact / this-author / instance-wide.
4. The grant is persisted in artifact_trust_grants (or held in-memory for “just-once”) and the daemon re-renders with secrets injected.

The matching check is a strict subset: if the artifact later adds a new required env var or grant, the existing grant doesn’t cover it and the consent modal re-prompts. agor_token is treated stricter still — only artifact-scoped grants cover it; author or instance scopes don’t.

You can review and revoke grants from Settings > Trusted Artifacts.

Setting up your env vars

1. Go to Settings > Environment Variables.
2. Add the keys your artifacts need (e.g., OPENAI_KEY, GITHUB_TOKEN).
3. Values are encrypted at rest with AES-256-GCM — they’re only decrypted when rendering.

Missing values render as empty string, not undefined. Check for that and surface a “configure X in Settings” prompt rather than calling APIs with empty creds.

Security properties

• Raw secret values never enter agent prompts. Agents see env var names; values are resolved at view time on the daemon and injected into the served file map — they’re not in any payload an agent reads via the artifacts MCP tools. Caveat: agor_artifacts_query_dom and agor_artifacts_query_document_html return whatever the iframe rendered, so an artifact that prints (or otherwise reflects) a secret-derived value into the DOM will surface that into the calling agent’s context. Opt out with agor_runtime: { enabled: false } for artifacts that intentionally render sensitive output.
• Per-viewer rendering. Two users viewing the same artifact get their own .env with their own values.
• Encrypted at rest with AES-256-GCM.
• No cross-author injection without consent — the TOFU flow blocks accidental secret leaks into someone else’s code.

Legacy format (agor.config.js)

Older artifacts used a /agor.config.js Handlebars sidecar. That format is no longer rendered. Artifacts still carrying it render in safe-degraded mode (no env vars or grants injected) and the board node displays a warning banner with an interpolated upgrade prompt — copy it into a new conversation with an agent that has agor_artifacts_get and agor_artifacts_publish tools, and the agent can do the migration mechanically.

From prototype to production

Artifacts are designed for rapid prototyping, not permanent hosting. When you’re ready to ship, the graduation path is straightforward:

1. The code is already on disk — artifact source files live at .agor/artifacts/<id>/ inside your worktree. They’re standard source files, not a proprietary format
2. Ask your agent to scaffold a real project — “Take this artifact and set it up as a Next.js app” or “Create a Vite project from this prototype”
3. Pick your hosting — Vercel, Netlify, Cloudflare Pages, a Docker container — the agent can set up deployment config for whatever platform you choose
4. Graduate your secrets — Move requiredEnvVars to your hosting platform’s environment variable system. The bundler convention is the same on the other side (CRA reads process.env.REACT_APP_*, Vite reads import.meta.env.VITE_*, etc.) — only the source of values changes.

You can also one-click eject to CodeSandbox (agor_artifacts_export_codesandbox) if you want a quick share link — note that daemon-supplied capabilities (AGOR_TOKEN, AGOR_PROXY_*) won’t work there.

The artifact gets you from idea to working UI in minutes. The agent gets you from prototype to deployed app when you’re ready.

Sandpack and CodeSandbox

Sandpack is the open-source in-browser bundler that powers artifact rendering. It’s built and maintained by the team at CodeSandbox, who also offer a full cloud development platform with collaborative VMs, instant environments, and team features. Sandpack itself is free and open-source (MIT licensed) — Agor uses the @codesandbox/sandpack-react package.

Security

Artifact filesystem operations include containment guards:

• Path traversal protection — All file paths are resolved and validated to stay within the worktree boundary
• Symlink filtering — Symbolic links are skipped during file enumeration to prevent filesystem escape
• Browser sandboxing — Artifacts render in Sandpack’s in-browser bundler, isolated from the host
